What Is Texture Streaming - How it works

By Ambar Jimenez | 2025-12-22 18:02:57

You're sprinting through a dense, photorealistic city or flying at high speed over a continent-spanning landscape in a modern game. A decade ago, such a scene would have been impossible without constant loading screens, severe texture "pop-in," or a hard drive groan audible through your headset. Today, it's seamless. The magic behind this technical marvel is Texture Streaming—an essential, behind-the-scenes technology that has fundamentally changed how games load and display their worlds.Texture streaming is the process of dynamically loading high-resolution texture data into GPU memory (VRAM) on-demand, in real-time, as you move through a game world. It's the reason open-world games can be so vast and detailed without requiring you to have 100GB of VRAM. For gamers on PC, PlayStation 5, Xbox Series X|S, and even the Nintendo Switch, understanding streaming demystifies many common visual issues like texture pop-in, blurry textures that suddenly sharpen, and the dreaded "HDD vs. SSD" performance debate. This guide will explain what texture streaming is, how it works on a technical level, why it's so crucial, and how you can optimize your system for it.

What is Texture Streaming? The Core Problem It Solves

Modern game textures are incredibly detailed. A single 4K texture for a character's armor can be 16-32MB. A sprawling game world uses tens of thousands of these textures. Loading every single texture for an entire open world into your graphics card's Video RAM (VRAM) at once would require hundreds of gigabytes of VRAM—far beyond even the most powerful consumer GPUs (which currently top out at 24GB).The Traditional (Pre-Streaming) Problem: Older games would load all necessary textures for a level into VRAM during a loading screen. This limited level size and detail. Open-world games would use aggressive Level of Detail (LOD) with low-quality textures in the distance, or they would force loading screens between zones.The Streaming Solution: Instead of loading everything upfront, the game engine constantly predicts what textures you will need in the next few seconds based on your position, camera direction, and movement speed. It then loads only those necessary textures from your storage drive (SSD/HDD) into VRAM, while unloading textures that are now far behind you. This creates a continuous, invisible flow of data.

How Texture Streaming Works: The Step-by-Step Pipeline

The streaming pipeline is a sophisticated dance between your storage, system RAM, and GPU. Here’s a simplified breakdown:

1. The Asset Pipeline (Preparation)

Textures are created in massive resolutions (8K, 4K).
They are processed into a streaming-friendly format. This often involves creating multiple mipmap levels (smaller versions) and sometimes breaking them into smaller tiles or chunks.
These processed textures are stored in highly compressed, optimized data archives on your game install drive.

2. The Runtime Engine (The Brain)

Visibility & Priority Calculation: Each frame, the game engine calculates:
- What is visible on screen? (Frustum culling).
- How far away is each object? (Distance calculation).
- What texture resolution (mip level) is appropriate for that distance on your specific screen resolution?
- What is likely to become visible soon? (Predictive loading based on player velocity).
The Texture Request Queue: The engine creates a prioritized list of texture chunks/mips that need to be in VRAM right now. The highest priority goes to textures for objects currently on-screen at the correct detail level.

3. The I/O & Memory Management (The Muscle)

Asynchronous Loading: Modern APIs (DirectStorage on PC/Windows, Xbox Velocity Architecture, PS5's Kraken ) allow the game to send dozens of tiny I/O (Input/Output) requests directly to the SSD without bogging down the CPU. This is non-blocking, meaning the game keeps rendering while textures load in the background.
Decompression: The compressed texture data is streamed from the SSD into system RAM, where it is instantly decompressed by dedicated hardware (like the PS5's Kraken decompressor, a modern CPU, or a GPU).
VRAM Upload: The decompressed texture data is then copied from system RAM into the GPU's VRAM, ready to be used for rendering the very next frame.
Eviction: Simultaneously, the engine identifies textures in VRAM that are no longer needed (e.g., for objects far behind the player) and marks that VRAM space as free for new textures.

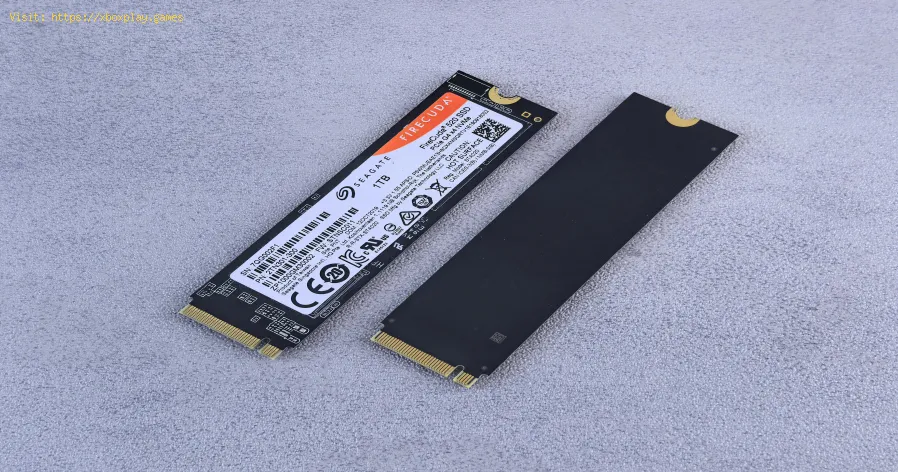

Why Fast Storage (NVMe SSDs) Are Now Critical

Texture streaming's performance is entirely bottlenecked by storage speed. Here's why the shift from HDDs to SATA SSDs to NVMe PCIe 4.0/5.0 SSDs is a game-changer:

HDD (Hard Disk Drive): Inadequate. Its slow seek times and low bandwidth cause massive texture pop-in, stuttering, and long draw distances with low-quality textures. It cannot keep up with real-time streaming demands.
SATA SSD: The minimum viable spec for modern games. Much faster than HDDs and can handle basic streaming, but bandwidth is limited (~550 MB/s).
NVMe SSD (PCIe 3.0/4.0/5.0): The target platform. Offers massive bandwidth (3,500 - 12,000+ MB/s) and, crucially, can handle thousands of tiny I/O requests per second with extremely low latency. This is what enables near-instantaneous texture loading with no pop-in, as seen in games like Ratchet & Clank: Rift Apart or Cyberpunk 2077's "Fast Travel" which is essentially extreme texture streaming.

DirectStorage (Windows): This Microsoft API is the PC's answer to console I/O. It allows games to bypass the CPU for data decompression and send compressed data directly from the NVMe SSD to the GPU VRAM, slashing latency and CPU overhead. This is the future of PC game streaming.
What Is Texture Streaming 2

Common Artifacts & Issues: What Goes Wrong

When the streaming system is stressed or misconfigured, you see visible artifacts:

Texture Pop-In: The most common issue. A low-resolution texture (a low mip) isdisplayed because the high-resolution version hasn't finished loadingfrom the drive yet. A second later, it "pops" to high detail. Cause: Storage too slow, VRAM too full, or streaming budget set too low.
Persistent Blurry Textures: Textures never resolve to a sharp state. Cause: Streaming system is permanently overloaded or stuck; often due to maxed-out VRAM or a software bug.
Stuttering/Hitching: The game freezes for a moment. Cause: The streaming system has fallen so far behind that the render thread has to wait for a critical texture to load, blocking the entire game. This is common on HDDs or PCs with insufficient system RAM.
"Swimming" or "Sliding" Textures: Lower mip levels are visibly replaced by higher ones in a wave-likepattern across a surface. This is the streaming system working, but notquite invisibly.

Optimizing Your System for Texture Streaming

For PC Gamers (The Most Control):

Install Games on an NVMe SSD. This is the single most important upgrade for modern games.
Increase VRAM Capacity: A GPU with more VRAM (e.g., 12GB+) gives the streaming system a larger "cache," reducing the frequency of loads/unloads.
Adjust In-Game "Texture Streaming" Settings: Many games have explicit settings:
- Texture Streaming Quality / Budget:Set this to match your VRAM. If you have 8GB VRAM, don't set the budget to "Ultra" which might assume 16GB.
- Texture Pool Size / VRAM Usage Target: A similar setting. Set it to 70-80% of your actual VRAM to leave headroom.
- Streaming Distance / Detail: Increases the radius for high-quality textures. Higher = more demand on streaming system and VRAM.
Ensure Sufficient System RAM: 16GB is a modern baseline; 32GB is ideal to give the OS and game plenty of room to buffer streaming data.

For Console Gamers (PlayStation 5, Xbox Series X|S):

You are already optimized. The consoles have ultra-fast custom NVMe SSDs, dedicated decompression hardware, and a unified memory pool (where VRAM and system RAM are the same). Just use the console's internal SSD or a certified expansion card. Never run a modern game from an external USB HDD.

The Future: Virtual Texturing & Nanite

Texture streaming is evolving into even more powerful paradigms:

Virtual Texturing (VT) / Sparse Virtual Texturing: Treats the entire world's texture set as a single, massive "virtual" texture. The engine streams in only the specific tiles of this virtual texture that are needed for the current view, at anexact 1:1 pixel-to-texel ratio. This eliminates mipmaps and over-draw,offering perfect texture detail with minimal memory waste. Used in id Tech and Unreal Engine.
Unreal Engine 5's Nanite: The next leap. Nanite virtualized geometry includes a form of virtual texturing for its micro-polygon geometry. It streams texture data per-micro polygon, allowing for unprecedenteddetail without traditional LOD pop-in.

Frequently Asked Questions (FAQs)

Q: Does texture streaming affect FPS (Framerate)?
A: Indirectly, yes. A smooth, invisible streaming system has minimal impact. However, ifthe system is overwhelmed (slow HDD, low VRAM), it can cause severe stuttering and frame time spikes as the game stalls waiting for textures. It doesn't lower average FPS so much as destroy frame pacing.

Q: Should I set textures to "High" if I have a low-VRAM GPU?
A: No, this is a common mistake. Setting texture quality to "High" or "Ultra" on a GPU with insufficient VRAM (e.g., 4GB or 6GB) will force the streaming system into a thrashing state, constantly loading/unloading, causing extreme stuttering and pop-in. Always match the texture setting to your VRAM capacity.

Q: Why do some games have a "HD Texture Pack" optional download?
A: This download contains the ultra-high-resolution source textures (e.g., 4K/8K). The base game ships with lower-resolution textures (e.g.,1K/2K) to keep the install size down. The streaming system will use theHD textures if they are installed, requiring more VRAM and fasterstorage.

Q: Is there a difference between "Loading Screens" and "Texture Streaming"?
A: Yes.Loading screens typically happen when loading a new, discrete level or area—loading geometry, scripts, and initial textures. Texture streaming happens continuously during gameplay within that loaded level, managing the texture detail.

Q: Does more system RAM help with texture streaming?
A: Yes, significantly. System RAM acts as a middleman cache between your SSD and VRAM. More RAM allows for a larger cache ofdecompressed textures ready to go to the GPU, smoothing out the dataflow and preventing stutters.

Texture streaming is the unsung hero of modern game design, enabling the vast,detailed worlds we now take for granted. Understanding it empowers youto diagnose performance issues, make informed hardware upgrades, andconfigure your settings for a perfectly smooth experience.

What's your texture streaming horror story? Was it an open-world game on an HDD, or cranking settings too high on a limited GPU? Share your experiences and solutions in the commentsbelow. If you're currently battling pop-in or stuttering in a specificgame, post your specs and we can help troubleshoot. For more deep divesinto core graphics technologies like Ambient Occlusion, Anti-Aliasing, and Ray Tracing, explore our full optimization library. Now, go enjoy those seamlessly loaded, crisp textures
